Rotary parking system PCX

Product Features

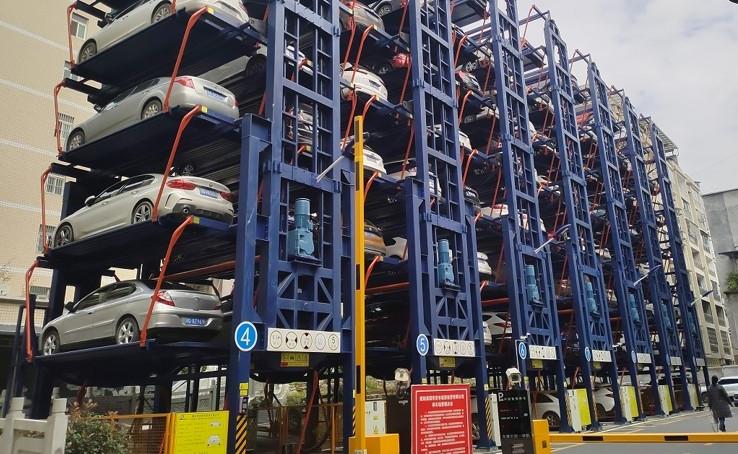

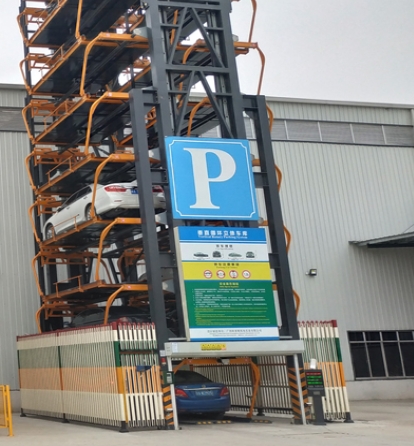

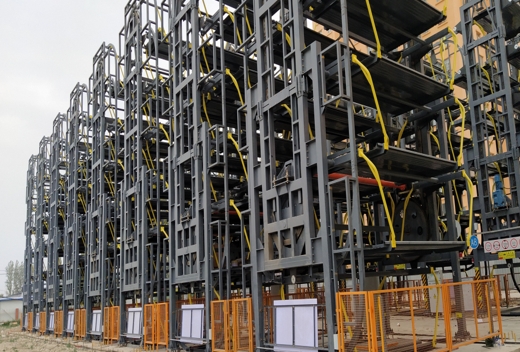

Vertical circulating mechanical parking equipment is a type of parking system that achieves vehicle storage and retrieval by performing a vertical circulating motion perpendicular to the ground.

Working principle

The deceleration motor drives the transmission mechanism, with a parking cradle installed at regular intervals on the traction component—the chain. The parking cradles move in a cyclic motion along with the chain, thereby achieving the purpose of vehicle storage and retrieval.

Equipment characteristics

Single power source, simple control, and small footprint; features such as space-saving, convenience, reliability, and flexibility.

Usage scenarios

Suitable for construction in old residential communities, urban villages, industrial parks, and narrow spatial areas

Reclaim your valuable land and multiply parking capacity by up to 16× with the world’s most trusted rotary parking solution. The Eounice Rotary Parking System transforms a mere 50–60 m² footprint into a sleek, high-tech vertical garage that parks 8 to 16 vehicles safely and effortlessly.

Why Thousands of Developers and Property Owners Choose Eounice

• Extreme Space SavingsOnly 2 traditional parking spaces on the ground → up to 16 vehicles stacked verticallyPerfect for plots where land costs exceed $10,000/m²

• Lightning-Fast AccessAverage vehicle retrieval in 60–90 secondsShortest-path intelligent rotation (clockwise or counterclockwise)No ramps, no driving inside the structure, no exhaust fumes

• Driver ConvenienceDrive in → lock car → press button → walk awayOne-touch operation with touchscreen, IC card, or optional mobile appOptional license plate recognition for fully automatic entry/exit

• Bank-Level Safety FeaturesMechanical anti-fall locks on every palletOverload, over-current, and phase-loss protectionPhotoelectric sensors detect people/objects in rotation zoneEmergency stop buttons and manual descent in power failure

• Built to Last 20+ YearsHot-dip galvanized steel structure (corrosion-proof)German SEW / Japanese Mitsubishi motor & reducerHeavy-duty roller chain tested for 100,000+ cyclesOperating temperature: -20°C to +60°C

• Eco-Friendly & QuietAverage 0.04 kWh per cycle (≈3–5 kWh per 100 cars)Noise level <60 dB – ideal next to homes and hospitalsOptional EV charging on every pallet

• Aesthetic IntegrationCladding options: tempered glass, aluminum composite, perforated metal, or custom brandingIndoor or outdoor installationLED lighting and modern design that enhances property value

Detailed Technical Specifications (Standard Models)

Applications That Benefit Most

• Luxury residential towers & villas

• Shopping malls & retail centers

• Hospitals & medical complexes

• 5-star hotels & office buildings

• Municipal public parking in dense downtown areas

• Car dealerships & service centers

Proven Global Track Record

• Over 3,500 systems installed since 2008

• Operating successfully in 30+ countries

• 99.98% uptime recorded in 2024

• 24/7 remote monitoring & lifetime technical support

Don’t let parking shortages limit your project’s potential. With the Eounice Rotary Parking System, you turn constrained land into a high-capacity, high-value asset that impresses residents, visitors, and investors alike.

Contact us today for a free site evaluation and customized ROI calculation.

Eounice – Parking Reimagined.
