Smart parking garage solutions

Advanced Parking Systems: Maximizing Your Space and Efficiency

Modern parking systems go beyond simple car lifts, offering sophisticated solutions to optimize limited space, enhance security, and improve parking convenience. These systems utilize various technologies to store multiple vehicles in areas that would typically accommodate only a few, making them ideal for urban environments, commercial buildings, and residential complexes. While their primary goal is space-saving, their differences lie in the mechanism of operation, required space, and the level of automation.

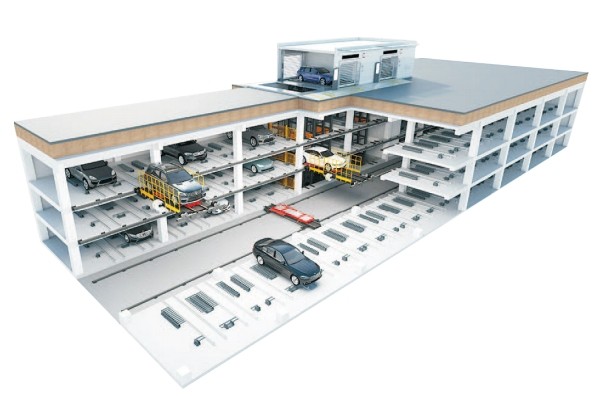

PPY Plane Movement (Horizontal Shifting Systems)

Description: These systems involve vehicles moving horizontally on a single plane or level. Cars are shifted sideways into available slots, often using robotic platforms or shuttles.

Advantages: Efficient use of horizontal space, relatively low height requirements, ideal for large parking areas with multiple levels. Can be semi-automated or fully automated.

Key Difference: Focuses on lateral movement within a level rather than vertical stacking.

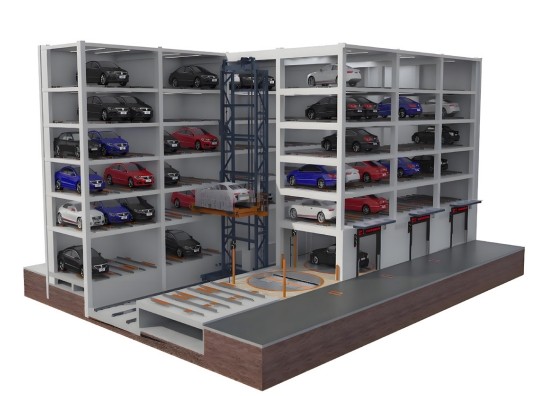

PXD Roadway Stacking (Semi-Automated Multi-Level Parking)

Description: A type of puzzle parking where vehicles are parked on platforms that can move horizontally and vertically, creating and closing gaps to access desired cars. It's often a semi-automated system where drivers might need to retrieve their cars.

Advantages: Maximizes capacity within a given footprint and height. Offers relatively quick retrieval times for individual cars compared to fully automated solutions.

Key Difference: Combines horizontal and vertical movement in a "puzzle" configuration, requiring specific movements to access a car.

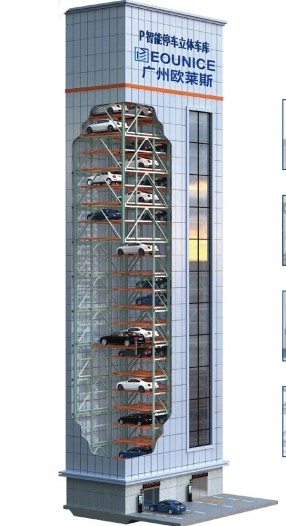

PCS Vertical Lifting Parking System (Automated Tower Parking)

Description: This system typically involves a central elevator that lifts and lowers cars into vertical storage slots within a tower-like structure. It's a fully automated system, often used in high-density areas.

Advantages: Extremely high parking density in a minimal footprint. Excellent for urban centers where land is scarce and expensive. Provides high security for vehicles.

Key Difference: Purely vertical stacking using a central lift, creating a compact tower.

PCX Vertical Rotary Parking System (Ferris Wheel Parking)

Description: Also known as "Ferris Wheel" parking, this system rotates vertically to bring a desired parking space down to the ground level. Cars are loaded onto platforms that move in a circular motion.

Advantages: Very small footprint, high density parking for a limited number of vehicles (typically 8-16 cars). Quick retrieval time.

Key Difference: Unique rotating mechanism that minimizes ground space needed for parking.

PSH Lifting and Traversing (Puzzle Parking Systems)

Description: A broad category encompassing various "puzzle" parking systems. Vehicles are parked on platforms that can be moved vertically (lifted) and horizontally (traversed) to create an empty space for a car to enter or exit. These can be above-ground, underground, or a combination.

Advantages: Highly flexible in design to fit various site constraints. Efficiently utilizes both horizontal and vertical space.

Key Difference: General term for systems using both lifting and traversing motions to create access to parking spots.

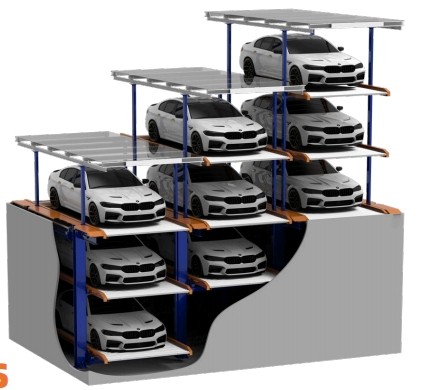

PSH Pit-Type Lifting and Traversing (Underground Puzzle Parking)

Description: A specific type of PSH system where some parking levels are located in an underground pit. This allows for increased parking capacity without affecting above-ground aesthetics or requiring significant building height.

Advantages: Maintains an uncluttered ground level. Maximizes parking density while minimizing visual impact.

Key Difference: Incorporates an underground pit to hide parking levels and increase capacity.

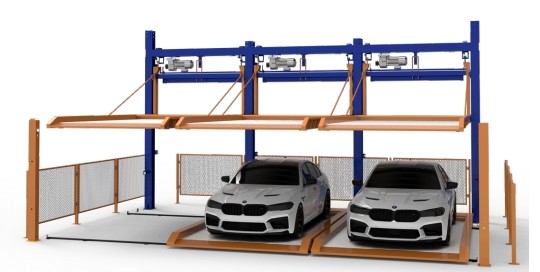

PSH Rear Cantilever Type Two-Floor Lifting and Traversing

Description: A PSH variant where the upper parking platform is supported by a cantilever structure from the rear, allowing for an open space underneath the front of the parked car. This often provides easier entry/exit for the lower level vehicle.

Advantages: Potentially easier access for the lower level car. Can be useful in specific architectural contexts.

Key Difference: Cantilevered design of the upper platform, often creating more open space at the front of the system.

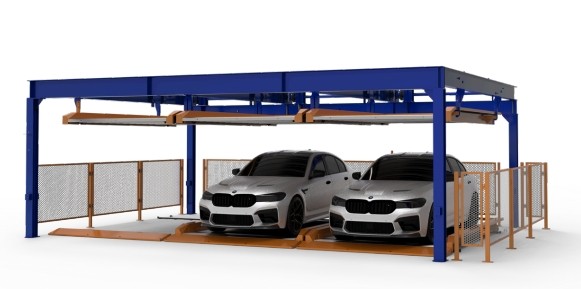

PSH Frame Type Two-Floor Lifting and Traversing

Description: Another PSH variant where the parking platforms are supported within a robust frame structure. Typically, this system also allows for two levels of parking (one on the ground, one lifted).

Advantages: Strong and stable structure. Provides efficient two-level parking within a defined frame.

Key Difference: Employs a full frame structure for support, usually for two-level parking.

PJS Pit Type Simple Lifting (Simple Vertical Stacker)

Description: A basic system where a single vehicle is lifted from ground level into an underground pit, allowing another vehicle to park on the ground level above it.

Advantages: Simple operation, cost-effective, completely hides the lower car. Ideal for residential use or small commercial spaces where one car needs to be "hidden" below another.

Key Difference: A straightforward two-level stacker with one car hidden in a pit, primarily for private use.

Each of these parking systems offers unique benefits, making them suitable for different applications based on land availability, height restrictions, budget, and the desired level of automation and convenience.
